SumoLite has an impressive mounting system collar Sumosnap with a two ton weight capacity rating. Sumo Snap is designed to mount their fixtures and it comes standard in SumoLite but it can also be used for other lighting and craft applications.
Simple and efficient handling can hold a lot of weight and adapt to other kits with a custom mounting plate that can be tapped for any purpose you need. The idea here is to have overkill support so you don’t have to worry about clamp fixtures.
Compatible with SUMOSNAP standard Babypin / 16mm Spigot. Other pins can be made on request.

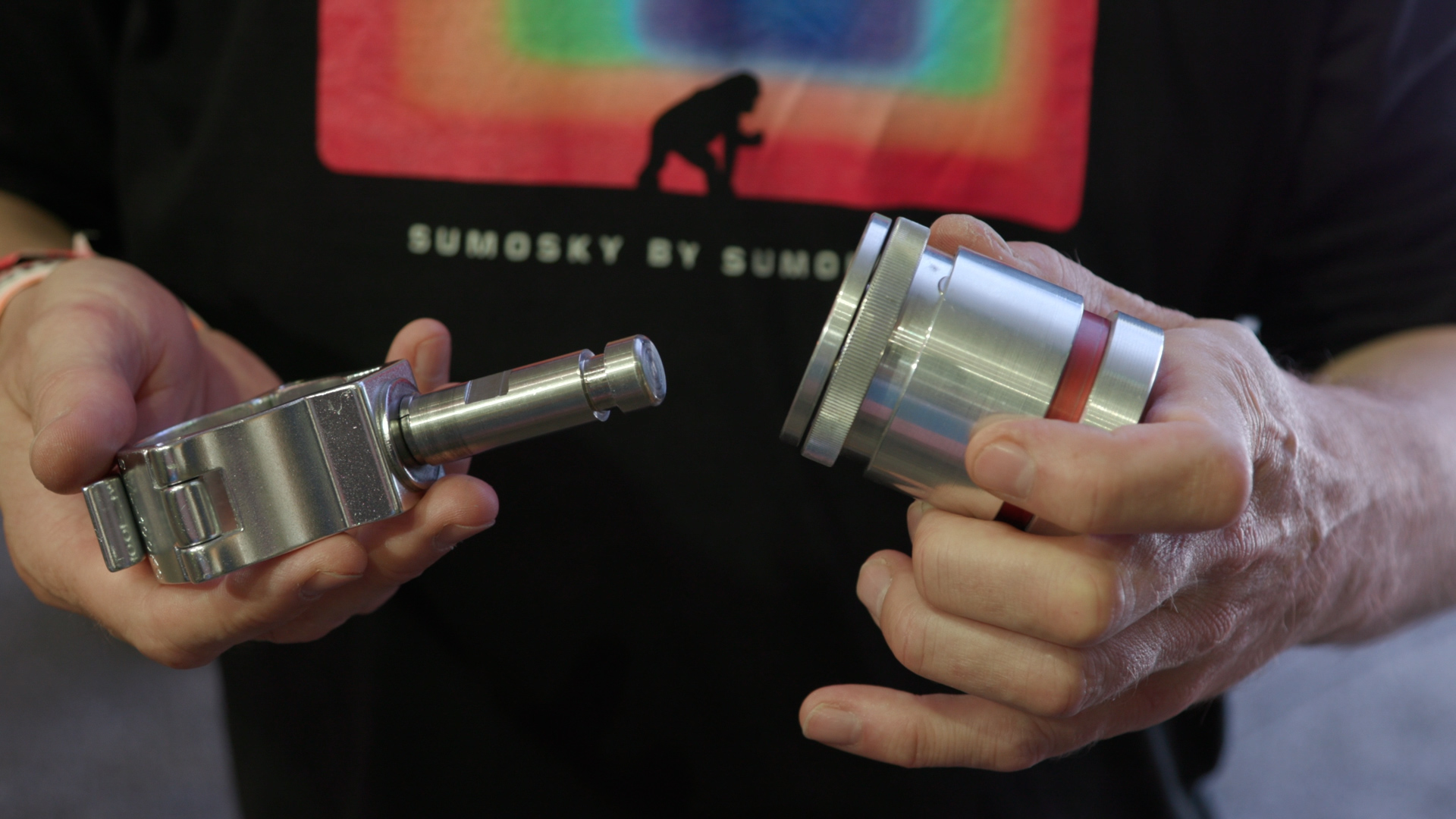

The SUMOClamp connects the SUMOSNAP directly to the 2 ″ 50mm truss pole and truss system. The SUMOPin is an adapter to the larger junior pin / 28mm Spigot Custom adapters can be easily created.
Key features
- Holding capacity – Holds any device up to 150 kg (330 lb); SF 10: 1
- Dimensions – D = 55 mm; L = 65 mm
- Weight – 347 g
- Consistency
- Matching junior pin / 16mm spigot
- Can be adapted to almost any device for retrofit; Up to 10 mm (3/8) internal thread or any bolt in this range
The SumoSnap Retail 95 USD And available today.
