Mutiny Raptor IO + AV Module for Red V-Raptor – Newshooter

In July, Rebellion This will launch its MUTINY RAPTOR IO + AV module Red V-RAPTOR camera. RAPTOR IO is an IO and power battery module.

The MUTINY RAPTOR IO features an interchangeable battery plate (V-mount or AB Gold-mount), 2x Fisher 3 pin R / S + power port, 3x 2 pi. 0B power port, 4 pin 00B CTRL port, 5 pin 0B timecode port, BNC Zenlock port, 6 pin 1B DC input and a 9 pin 0B EXT pass-though / small HD camera control port.

It has a fuse and an anti-drain switch, as well as a 9-pin 0B EXT pigtail with an angled keyway right angle connector.

The optional AB module replaces the battery plate and offers an actual 1 × 4 frequency show HD 12G SDI re-clocking DA, an LED voltmeter with off / on switch, 2x XLR audio input and a 2 pin 0B power output.

Includes a 5 pin 00B pigtail and a 12G SDI (removable) input cable.

MUTINY IO will offer replaceable AB Gold and V-mount plates for those who want to switch battery mount.

RAPTOR IO will be sold individually or as a bundle with AV module. The AV module will be an optional add-on for those who want to add it down the road.

Price not yet available.

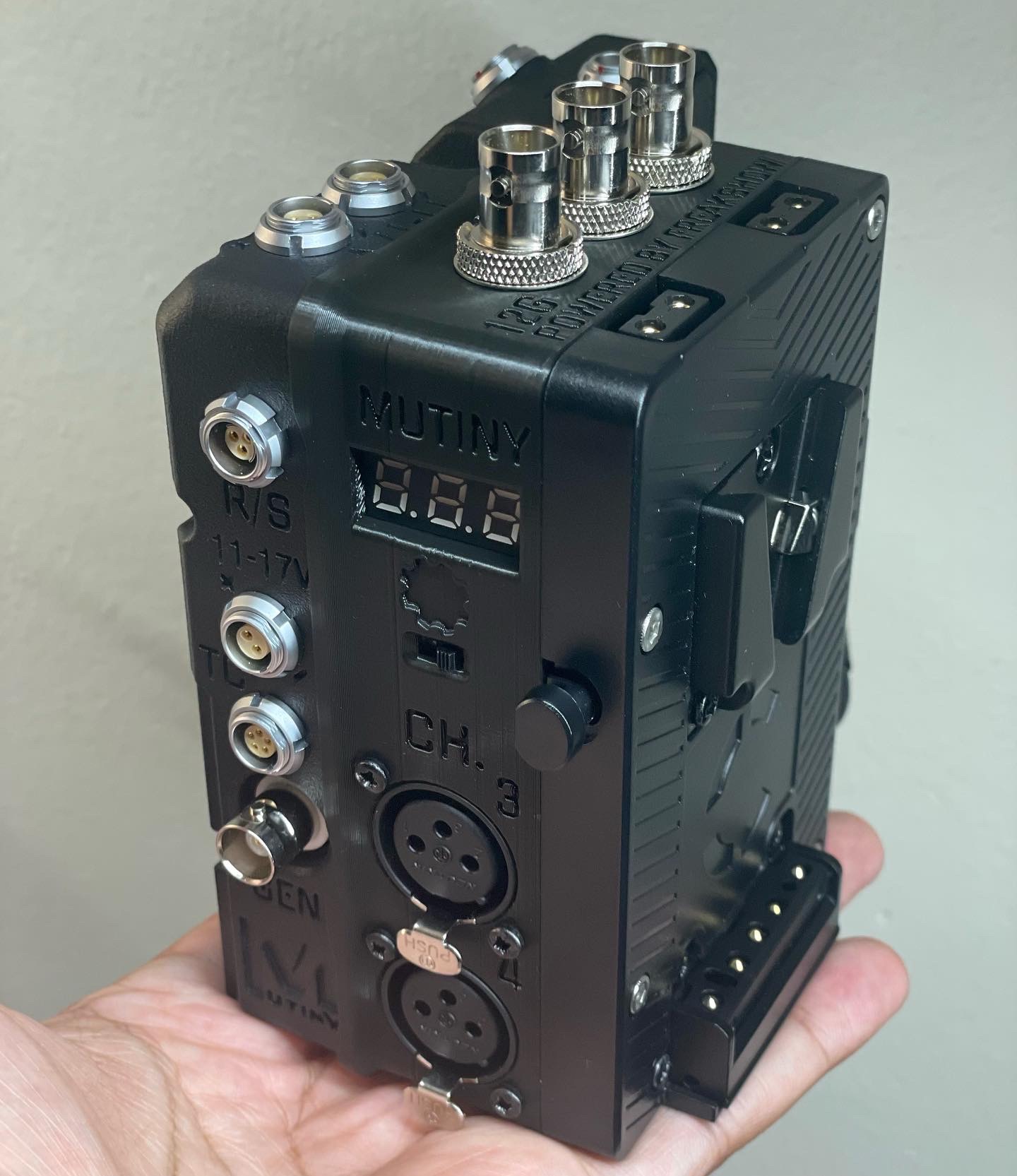

Please note that all these images you see in the article are prototypes. The fit and finish will change and match the high quality of our existing product line.
